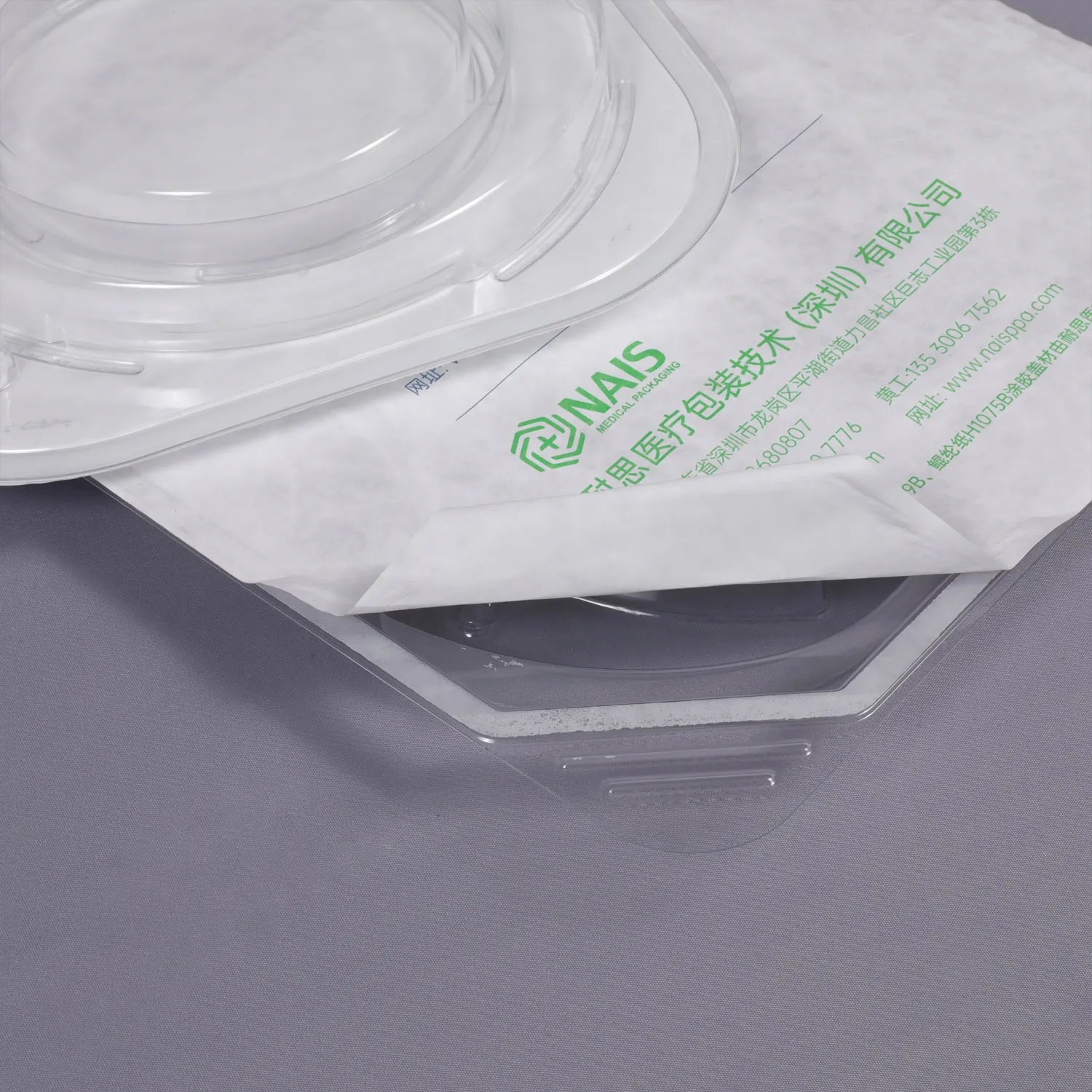

DuPont™ Tyvek® Coated Lids

    Quantity:
    Contact Now
    DuPont™ Tyvek® Coated Lids
    Material: Coated Tyvek Paper (dialysis paper can also be used)

    Model: CR27 1073B/1059B/2FS (Coated domestic/imported medical 60g/70g/80g dialysis paper)

    Size/Shape/Thickness: Customized

    Combination: Combined with the blister box for heat sealing

    Advantages: It can be cut into different shapes and sizes according to customer needs, and the use is flexible.

    Sterilization Method: EO, Irradiation Sterilization

    Printing: Flexible printing, multi-color printing, can print sterilization indicator color.

     Coated Lid Stock / Heat-Seal Coated Lid

    Description:

    Coated Lid Stock is a specialized lidding material designed to create a hermetically sealed, breathable top for pre-formed thermoformed blister trays. It is a multi-layer laminate where a breathable substrate is coated with a heat-activated adhesive on one side.

    1.Key Features:

    Material:​ The substrate is typically Coated Tyvek®​ or coated medical-grade dialysis paper (60g/70g/80g). The coating is a proprietary heat-seal layer.

    Format & Customization:​ Supplied in sheets or rolls, it is highly customizable​ in size, shape, and thickness. A key feature is its ability to be die-cut into various shapes and sizes​ to match different tray flanges precisely.

    Function:​ It is combined with a blister box for heat sealing, where the adhesive coating melts to bond securely to the tray's rim, creating a peelable seal.

    Sterilization & Printing:​ Compatible with EO and Irradiation​ sterilization. It supports flexible, multi-color printing, including sterilization process indicators.

    2.Primary Advantages:

    • Design Flexibility & Efficiency:​ Can be pre-cut to exact specifications, minimizing waste and simplifying the sealing process on automated lines.
    • Reliable Sterile Barrier:​ Creates a validated, breathable seal that maintains sterility post-processing while allowing sterilant penetration during cycles.
    • Secure Bonding:​ The specialized coating ensures a strong, consistent seal with common Blister tray materials (PETG, APET,PP,PS,PVC etc.), providing tamper evidence.

    3.Main Applications:

    Used exclusively to seal thermoformed blister trays containing medical devices. It is the critical component in creating a complete sterile barrier system for surgical instrument sets, orthopedic implants, and single-use device kits​ processed via low-temperature sterilization.
