Tyvek® Sterilization Pouch

    Quantity:
    Contact Now
    1073B.1059B.2FS
    Material:
    1. Dupont Medical Tyvek®+PET/SPE Easy-peel film
    2. Dawnsens paper, Hypak paper+PET/SPE Easy-peel film
    Model:
    1. Dupont Tyvek:1073B/1059B/2FS
    2. Dawnsens M7001/ Hypack H1075B/Hypak H1060B
    Size/Shape/Thickness: Customized
    Combination: It can be used alone, and can also be used with blister box, backing board combination
    Advantages: Light weight, strong tear resistance, good resistance to bacteria, strong permeability, not easy to penetrate
    Sterilization Method: EO,Irradiation Sterilization
    Applications: Primarily used for sterilization packaging of medical devices and consumables, ensuring protection against bacterial and chemical contamination from sterilization through to sterile device use. Commonly packaged items include medical instruments, gauze pads, surgical gowns, and medical catheters.
    Printing: Flexible printing, multi-color printing, can print sterilization instruction mark

    Tyvek Sterilization Pouch

    Description:

    The Tyvek Sterilization Pouch is a high-performance medical packaging solution made from DuPont™ Tyvek®, a spunbonded olefin material composed of high-density polyethylene (HDPE) fibers. It is designed to create a reliable sterile barrier system for terminally sterilized medical devices, ensuring product safety from the point of sterilization to the point of use.

    1.Key Features:

    Material: The Tyvek Pouch  is constructed from medical-grade Tyvek, which provides an outstanding microbial barrier to prevent contamination .

    Sterilization Compatibility: Compatible with all major sterilization methods, including Ethylene Oxide (EO), Gamma and Electron-beam radiation, Steam (under controlled conditions), and low-temperature oxidative processes .

    Design: The Tyvek Pouch  is available in a wide range of customizable sizes and shapes, in both self-sealing and heat-sealing styles .

    2.Primary Advantages:

    • Superior Protection: The Tyvek Pouch Offers exceptional tear strength and puncture resistance, protecting contents from damage even from sharp instrument edges, unlike medical-grade paper .
    • Clean Peel & Low Particulates: Generates very few airborne particles when opened, minimizing the risk of introducing contaminants into clean environments like operating rooms .
    • Breathability & Process Efficiency: The material's structure allows for effective air removal, sterilant penetration, and efficient drying during sterilization cycles .
    • Proven Reliability: A trusted, decades-old material in global healthcare, known for maintaining its protective properties through sterilization .

    3.Main Applications:

    The Tyvek Pouch  is widely used for packaging low-profile, lightweight medical devices (e.g., surgical instruments, implants) by manufacturers and for in-house sterilization of surgical tool sets in hospitals and outpatient surgical centers.

    Easy-peel custom tyvek pouches for sterilization material's Choice

    Medical breathable paper material ChocieFilm material Choice
    Tyvek 1073BPET/PE ,PA/PE
    Tyvek 1059BPET/PE ,PA/PE
    Tyvek 2FSPET/PE ,PA/PE
    Hypak H1075BPET/PE ,PA/PE
    Hypak H1060BPET/PE ,PA/PE
     Dawnsens M7001PET/PE ,PA/PE
    Please Note : Hypak H1075B,Hypak H1060B and Dawnsens M7001 are raplacement material of Tyvek paper .We often call them as Chinese Tyvek .They are made using the same method as Tyvek. Their physical and chemical properties are very similar. However, they are much more economical and practical than Bitweiqiang paper. They are widely used in China and Southeast Asia.

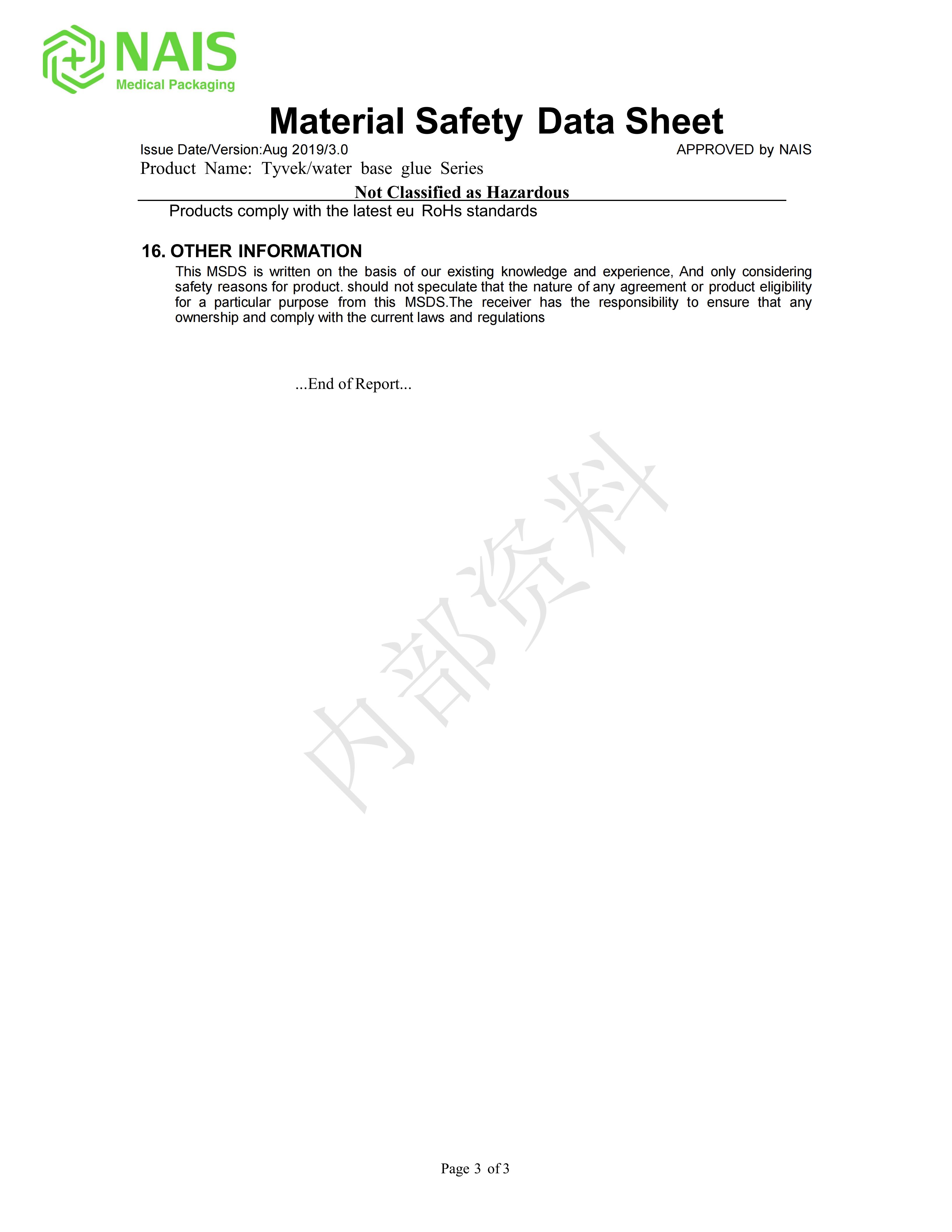

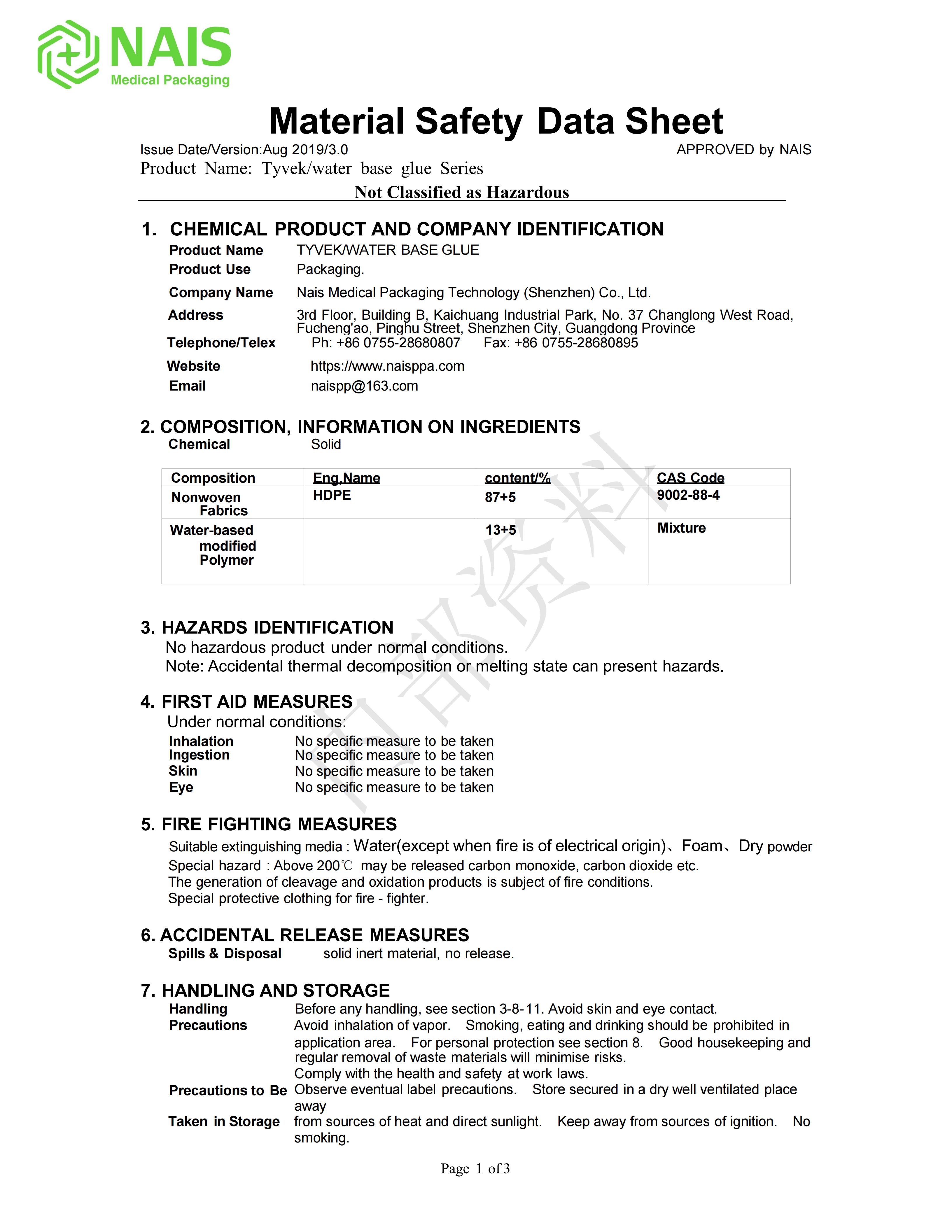

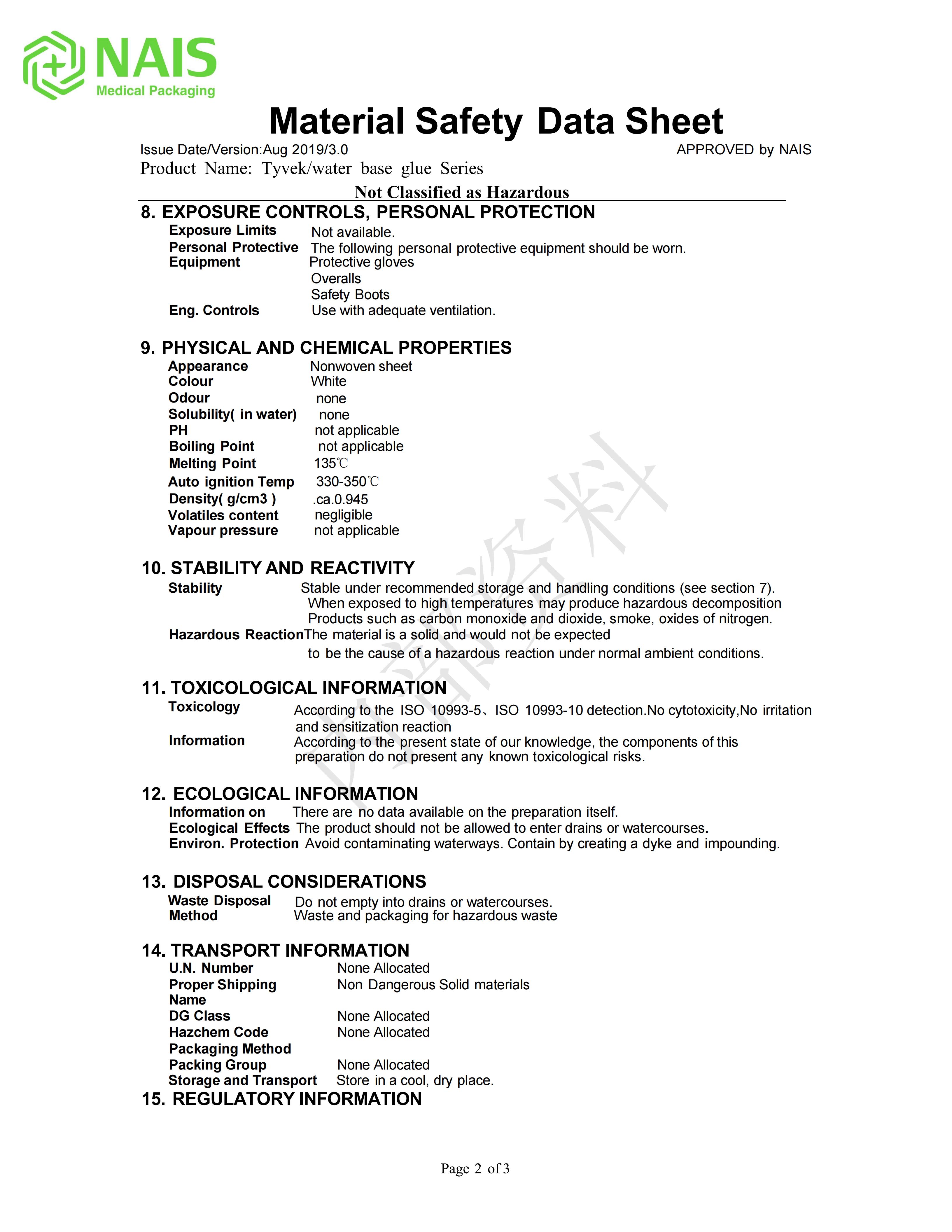

    Tyvek Physical property tables and material safety data sheets

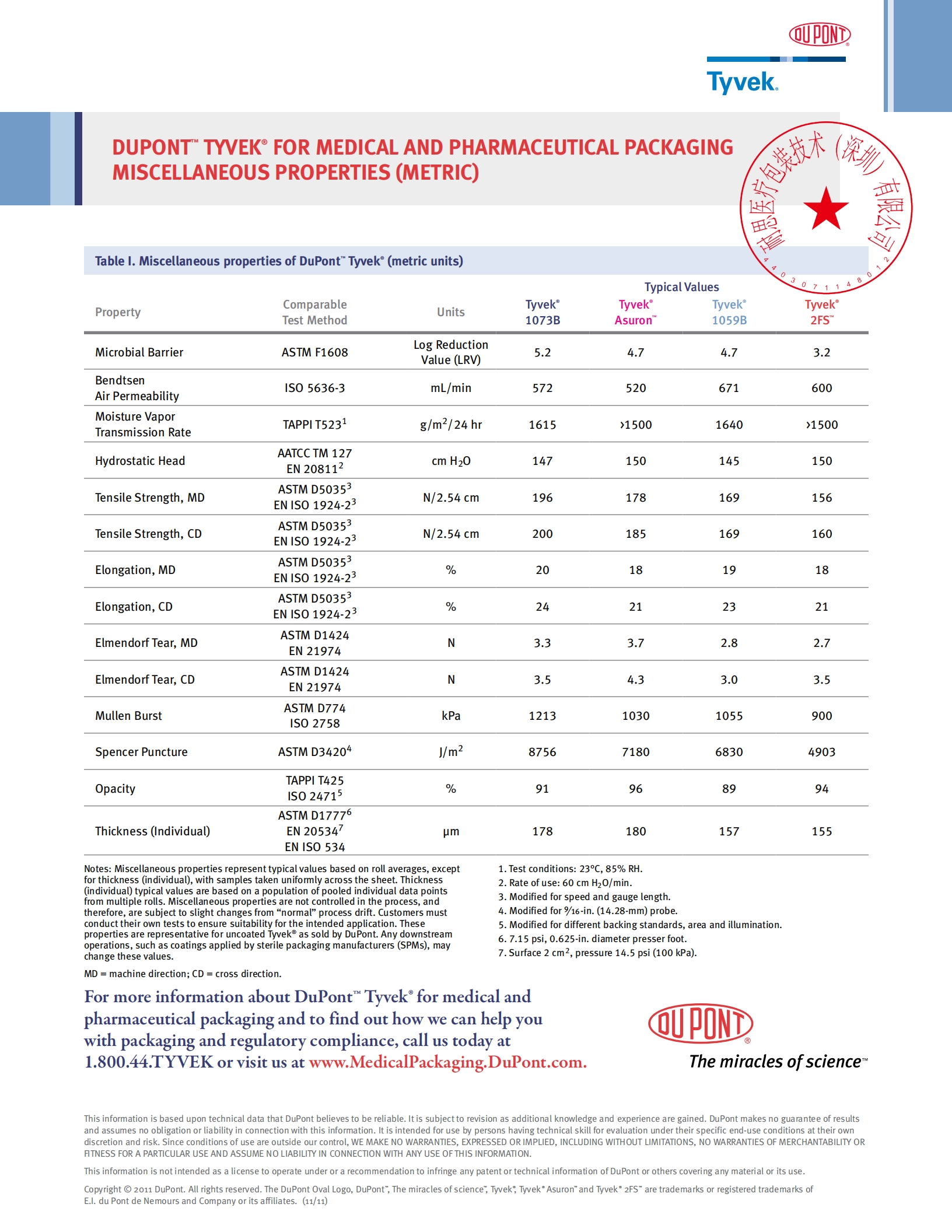

    Dupont Tyvek Physical properties sheet 1073B ,1059B,2FS
