Header Bags

    Quantity:
    Contact Now
    Tyvek 1073B, Tyvek 1059B , Tyvek 2FS ,Hypak H1075B,Hypak H1060B ,Dawnsen M7001etc
    Material:

    1. Dupont Medical Tyvek ®Coated Paper+PE durable film

    2. Dawnsens paper, Hypak paper+PE durable film

    3. Dialysis paper+PE durable film


    Model:

    1. Dupont Tyvek: 1073B/1059B/2FS

    2. Dawnsens M7001/ Hypak H1075B/Hypak H1060B

    3. Domestic/imported dialysis paper: 60g/70g/80g

    Size/Shape/Thickness: Customized

    Combination: Generally combined with PE film

    Advantages: Lower cost than Tyvek sterilization bag

    Sterilization method: EO, Irradiation sterilization

    Printing: Flexible printing, multi-color printing, can print sterilization instruction mark.

    Header Bags /Tyvek Header Bags

    Description:

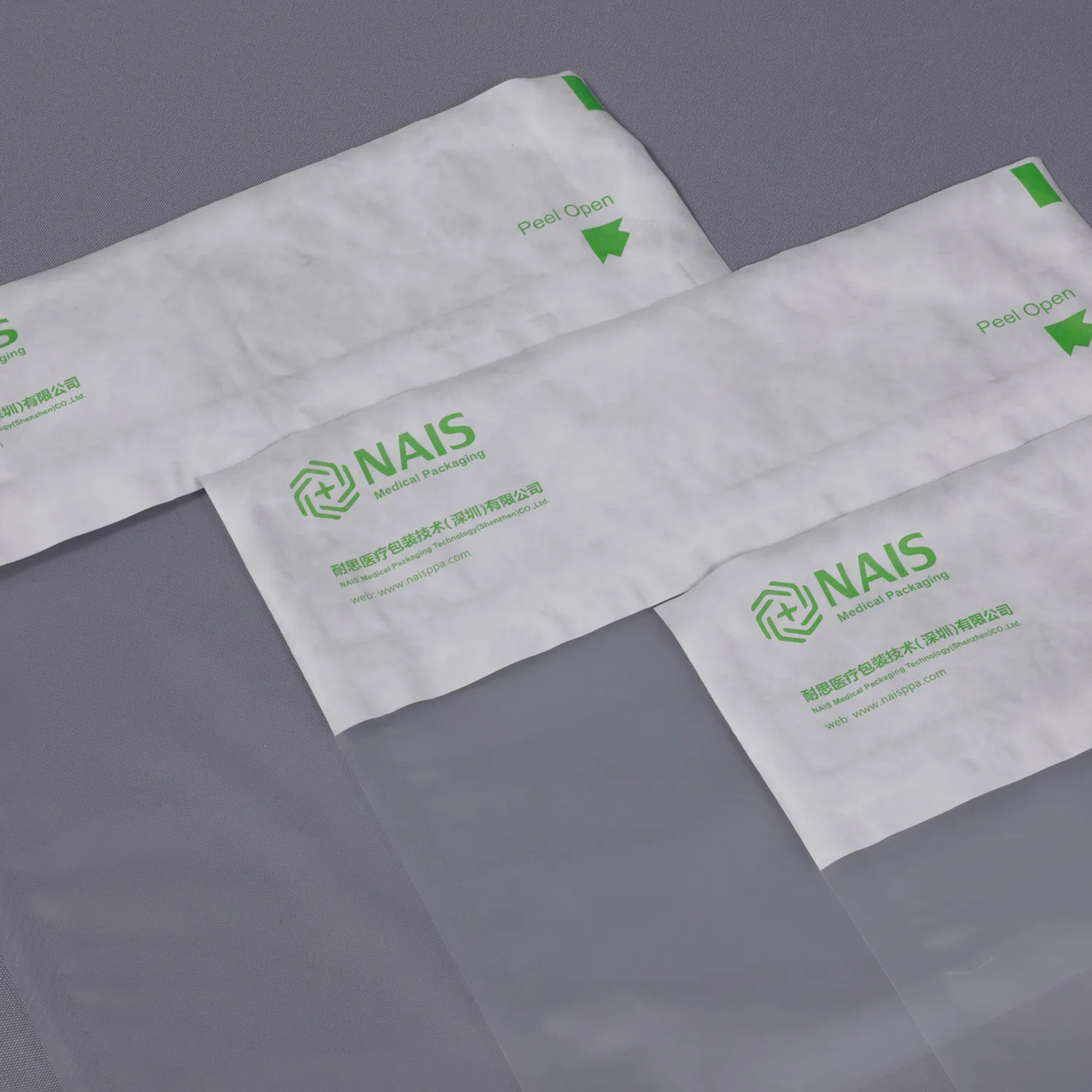

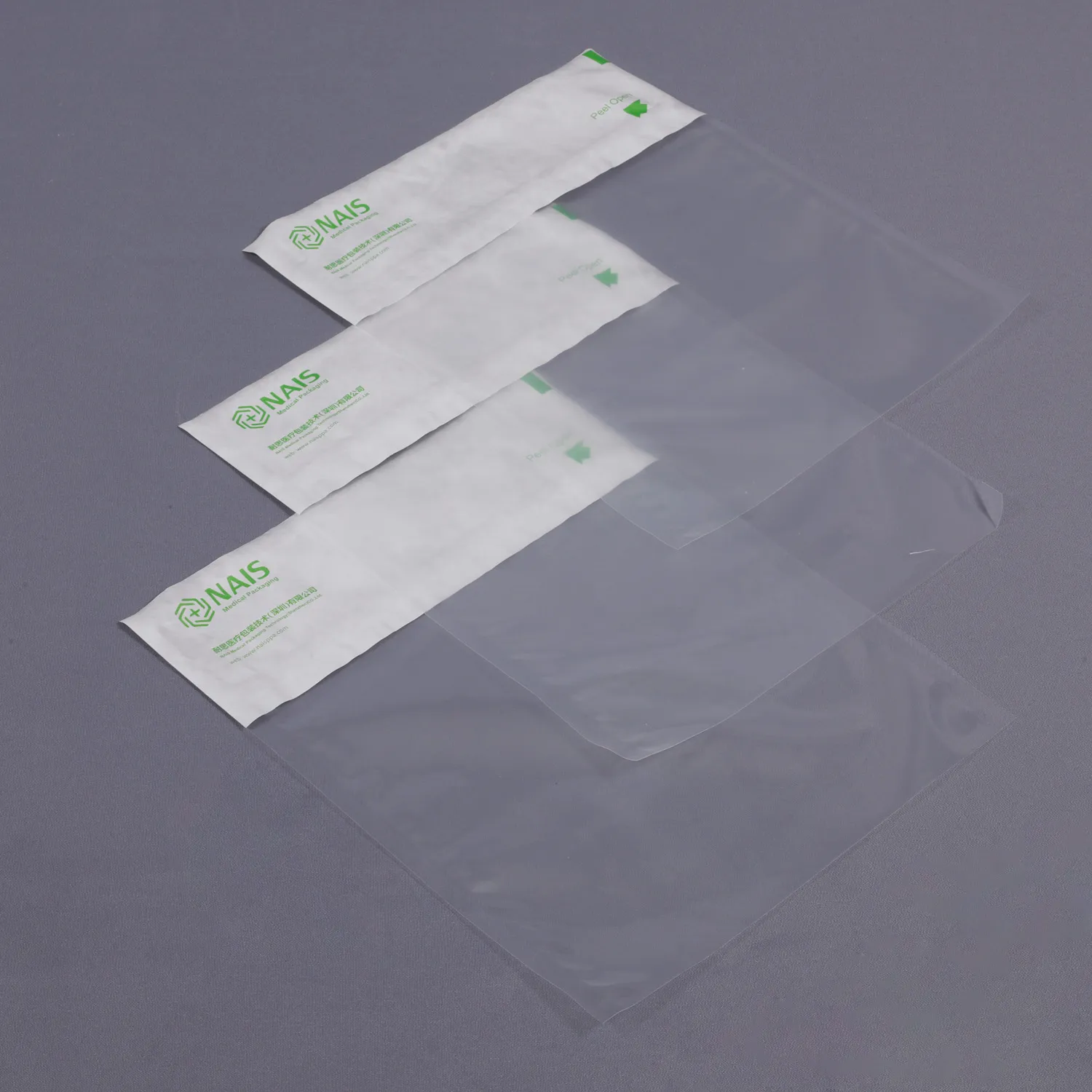

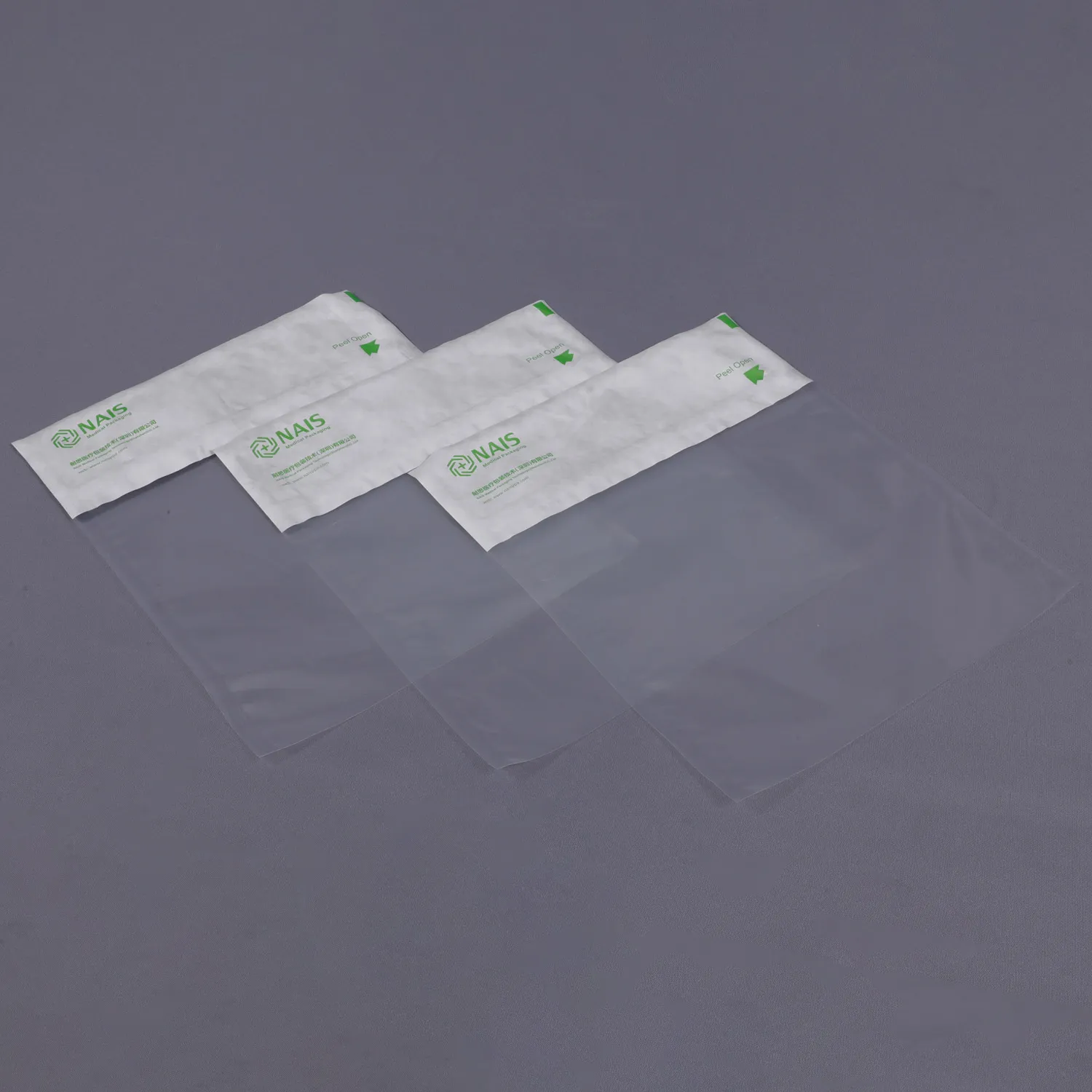

    AHeader BagsorTyvek Header Bags, is a pre-made, three-side-sealed sterilization pouch with an open top and an extended, flat"header"or"ear"section at the seal. It is designed for easy hand or machine loading of medical devices before the final top seal is applied.

    1.Key Features:

    Material:​ The Header Bags is constructed from a lamination of a breathable medical paper to a transparent PE film. The breathable side options include DuPont Tyvek coated paper, Dawnsens paper, Hypak paper, or Medical-Grade dialysis paper​ (60g/70g/80g), combined with a durable PE film.

    Structure:​ Comes in standard models (e.g., Tyvek 1073B, Tyvek 1059B, Tyvek 2FS) and is pre-sealed on three sides. The extended header provides a large, clear area for printing and an easy grip for opening.

    Sterilization:​ The Header Bags is compatible with Ethylene Oxide (EO)​ and Irradiation​ sterilization methods.

    Customization:​ Size, shape, and thickness are customizable. Supports flexible, multi-color printing, including sterilization indicator marks, on the header.

    2.Primary Advantages:

    • Cost-Effective:​Tyvek Header Bags offers a lower cost​ compared to premium Tyvek® pouches, especially when using materials like dialysis paper.
    • Processing Efficiency:​ The pre-formed bag with an open top and header allows for quick, easy loading and provides a defined, printable area for vital information.
    • Effective Sterile Barrier:​ Tyvek Header Bags provides a validated sterile barrier system suitable for common low-temperature ,Ethylene Oxide (EO)​ and Irradiation​ sterilization sterilization methods.

    3.Main Applications:

    Tyvek Header Bags is primarily used for packaging and sterilizing single-use, mid-to-low-risk medical devices and consumables​ that are compatible with EO or irradiation, such as gauze, simple instruments, and procedural kits. The header is ideal for product identification and tracking.
